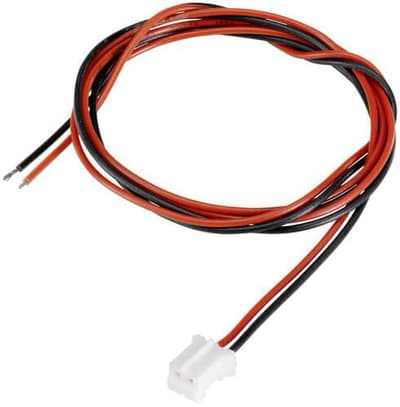

Type 2503 Cable Plug for Small Brkert Solenoid Valve Type 6712 & 6724

Brand: Burkert Fluid Control Systems
Does not ship to Virginia, United States

Plug connection with locking lugs for contacting Bürkert whisper valves. This robust and affordable plug connection has become well established for Bürkert whisper valves Types 6712 and 6724 in the fields of analysis technology.

In addition to the stranded wire versions, versions with electronics assembly are also available that actively influence the switching behaviour of the valve and thus fully exploit the potential of the whisper valve actuator.
Features
  • Latching
  • Stranded wire version available
  • Boost Close and Soft Close electronics assembly
  • Impuls-Elektronik

Specifications

Environmental Protection

  • IP10

Ambient Temperature

  • 0° to 70° C

Maximum Continuous Current

  • 2 A, 0.2 A

Contact Resistance

  • ≤ 10 mΩ

Nominal Voltage

  • Up to 24 Vdc

Number of Pins

  • 2

Material of Construction

  • Connector Housing: Polyamide
  • Plug Contacts: Bronze Gold-Plated
  • Flying Leads (Insulation): PVC
