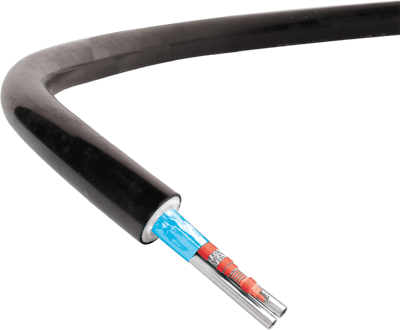

TubeTrace with HPT™ Electrically Heated Tubing Bundles

Brand: Thermon, Inc
Does not ship to VA, United States

TubeTrace, with “cut-to-length” HPT power-limiting heat tracing, is designed to provide freeze protection or temperature maintenance for tubing where high temperature exposure capability is possible.

HPT withstands temperature exposures of 260°C (500°F).

The composite construction of the heating element and fiber substrate, plus an additional fiber cushion layer, make HPT an exceptionally durable heating cable.

Durability has made TubeTrace with HPT the industry standard for high temperature emissions and process analyzer applications.
Features
  • Medium to high process temperature maintenance
  • Steam clean/purge
  • Certified for use in ordinary (non-classified) areas and in potentially explosive atmospheres

Specifications

Available Watt Densities

  • 5, 10, 15, 20 w/ft @ 50° F
  • 16, 33, 49, 66 w/m @ 10° C

Voltage Range

  • 120 to 240 Vac

Minimum Installation Temperature

  • -40° C
  • -40° F
