1150 Multi-Channel Process & Program Controller

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

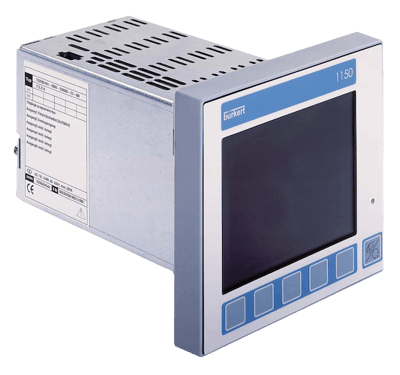

The Type 1150 is a process and program controller with up to 4 controller or program channels.

The instrument is built to the format 144 mm x 130 mm for a standard 92 mm x 92 mm panel cut-out and a mounting depth of 170 mm. The display is a 5" color graphics display (27 colours).

The layout of the screen templates can be individually adapted and adjusted. Two freely configurable screen templates make it possible to customize the placing of texts, process values, background pictures and icons.

A maximum of 4 Analog inputs and 6 logic inputs are available, as well as six expansion slots for switched or Analog outputs. A setup program is available for comfortable configuration from a PC.
Features
  • Brilliant 5" colour graphics display, with 27 colours
  • Freely configurable screen templates
  • Up to 4 controller channels
  • 50 programmes, with 1,000 segments under dynamic management

Specifications

Accuracy

  • Input for Resistance Thermometer & Standard Signals (Measurement Accuracy): ≤ 0.05 to 1 % with 250 milliseconds Sampling Time
  • Thermocouple Input (Measurement Accuracy): ≤ 0.25 % with 250 milliseconds Sampling Time

Ambient Temperature Range

  • -5° to 50° C (23° to 122° F)

Approvals & Certifications

  • UL 94
  • EMC EN 61 326 (Emission - Class B, Immunity - to Industrial Requirements)
  • Electrical Safety: EN 61 010, Part 1 Overvoltage Category III, Pollution Degree 2

Circuit Protection

  • Solid-state Relay: Varistor

Communication

  • Baud Rate: 9,600, 19,200, 38,400 - Interface (COM1)
  • Ethernet - Interface (COM2)
  • Interface Typical: PC-interface - COM1
  • Interface Typical: RS-422/RS-485 - COM1 - Interface (COM1)
  • PROFIBUS DP - Interface (COM2)
  • Protocol: Modbus - Interface (COM1)
  • RS-232 - Interface (COM1)
  • TCP/IP Protocols - Interface (COM2)

Consumption

  • Power: 30 VA, Max.

Current

  • Input for Resistance Thermometer (Measuring Current): 250 µA
  • Measurement Circuit Monitoring (Sensor): 0-20 mA
  • Measurement Circuit Monitoring (Sensor): 4-20 mA

Display

  • 5” Colour Graphics Display with 27 Colours

Electrical Connectors

  • Connection Circuit: 2-Wire - Input for Resistance Thermometer
  • Connection Circuit: 3-Wire - Input for Resistance Thermometer
  • Plug-In Screw Terminals Conductor Cross-section, Max.

Electrical Contacts

  • Relay: Changeover Contact
  • Solid-state Relay: 1 A at 230 V

Enclosure, Body Material

  • Front Bezel: Plastic to UL 94 V0 144 mm x 130 mm
  • Metal

Environmental Protection

  • Front IP65
  • Rear IP20

Humidity

  • ≤ 75 % Relative Humidity Annual Mean, Non-Condensing

Isolation

  • Electrical Isolation: 2,300 Vac
  • Electrical Isolation: 42 Vac
  • Electrical Isolation: 60 Vdc

Load Resistance

  • Current: ≤ 450 ohms
  • Voltage: ≥ 500 ohms

Measuring Range

  • Input for Standard Signals (Heat Current): 0-50 mA AC
  • Input for Standard Signals (Potentiometer): 100 to 10,000 ohms
  • Input for Standard Signals: 0-20 mA, Voltage Drop ≤ 1 V
  • Input for Standard Signals: -10-10 V
  • Input for Standard Signals: 4-20 mA, Voltage Drop ≤ 1 V

Mounting

  • Mounting Depth: 170 mm
  • Panel Mounting as Per ISO 43 700

Output

  • 0-10 V
  • 2 to 10 V
  • 4-20 mA
  • Logic: 0-20 mA
  • Logic: 0-22 V
  • Logic: 0-30 mA
  • Logic: 0-5 V

Relay Output

  • Contact Rating: 3 A at 250 Vac Resistive Load

Resistance

  • Input for Resistance Thermometer (Sensor Lead Resistance): Max.
  • Input for Standard Signals: > 100 kiloohms

Resolution

  • A/D Converter (Dynamic Resolution): 0 to 16-bits - Controller
  • Color Screen: 320 x 240 Pixels

Response Time

  • Minimum 0 to 500 milliseconds - Interface (COM1)

RTD Type

  • Cu50 - Input for Resistance Thermometer
  • KTY11-6 - Input for Resistance Thermometer
  • Ni100 (DIN 43 760) - Input for Resistance Thermometer
  • Pt100 (EN 60 751) - Input for Resistance Thermometer
  • Pt1000 (EN 60 751) - Input for Resistance Thermometer
  • Pt50 (EN 60 751) - Input for Resistance Thermometer
  • Pt500 (EN 60 751) - Input for Resistance Thermometer
  • PtK9 - Input for Resistance Thermometer

Sample Rate

  • 250 milliseconds [50 milliseconds, 150 milliseconds, 250 milliseconds (Configurable)]

Sensor, Probe Type

  • B Thermocouple
  • C Thermocouple
  • D Thermocouple
  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • L Thermocouple
  • N Thermocouple
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple
  • U Thermocouple

Size

  • Screen Diagonal: 5” (12.7 cm)

Storage Temperature

  • -40° to 70° C (-40° to 158° F)

Supply Voltage

  • 20-30 Vac/Vdc
  • For 2-Wire Transmitter: 22 V at 30 mA
  • Switchmode PSU: 110-240 Vac, -15 to 10 % at 48 to 63 Hz

Temperature Effect

  • Input for Resistance Thermometer (Ambient Temperature Error): 50 ppm/°C
  • Input for Standard Signals & Thermocouple Input (Ambient Temperature Error): 100 ppm/°C

Temperature Range

  • Input for Resistance Thermometer: -200° to 850° C (-328° to 1,562° F)
  • Thermocouple Input: -200° to 2,495° C (-328° to 4,523° F)

Voltage

  • Measurement Circuit Monitoring (Sensor): 0-10 V
  • Measurement Circuit Monitoring (Sensor): 2 to 10 V
