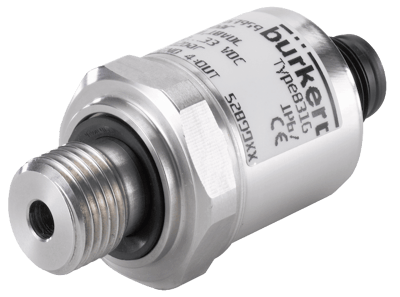

8316 Pressure Transmitter

Brand: Burkert Fluid Control Systems
Does not ship to VA, United States

The compact Type 8316 pressure transmitter meets the highest requirements with regard to mechanical loading, EMC characteristics and operational reliability and is particularly suitable for demanding industrial applications. For aggressive fluids against stainless steel the process connection in PVDF is available.
Features
  • Ceramic/thick film measurement cell
  • Two-wire version for 4-20 mA output
  • Compact, stable construction for the highest operational reliability

Specifications

Accuracy

  • ≤ 0.5 % of Full Scale

Ambient Temperature Range

  • -15° to 85° C (5° to 185° F)

Applications

  • Industrial Applications

Approvals & Certifications

  • Drop Test According EN 60068-2-23 (From 1 Meter on Concrete)

Approvals & Certifications

  • CE
  • EMC: EN 61326-2-3
  • UL (C,US): UL 61010-1 + CAN/CSA C22 No.61010-1

BSP Connection

  • G 1/4” Male

Burst Pressure

  • Overload: 2.5 times Full Scale at psi: 87.06 to 1,451 (kPa: 600 to 10,000, bar: 6 to 100)
  • Overload: 3 times Full Scale at psi: 0 to 58.04 (kPa: 0 to 400, bar: 0 to 4)

Circuit Protection

  • Short Circuit Protected

Electrical Connectors

  • DIN, Mini DIN Connectors
  • Round Male Connector M12 x 1

Enclosure, Body Material

  • 316L Stainless Steel, 1.4404

Environmental Protection

  • IP67

Mounting Position

  • Downward Position

NPT Connection

  • 1/4” NPT Male

Operating Voltages

  • 7-33 Vdc, Unregulated

Output

  • 0-10 Vdc, 3-Wire
  • 0-5 Vdc
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0 to 100
  • kPa: 0 to 10,000
  • psi: 0 to 1,451

Process Connection Material

  • PVDF

Process Temperature

  • -15° to 125° C (5° to 257° F)

Resolution

  • 0.1 % of Full Scale

Response Time

  • Dynamic Response: < 2 milliseconds (Suitable for Static & Dynamic Measurements)
  • Dynamic Response: Typically 1 milliseconds (Suitable for Static & Dynamic Measurements)

Reverse Polarity Protection

  • Protected Against Reverse Polarity

Seat / Seal Material

  • Seal: EPDM
  • Seal: FKM

Shock

  • 25 G, 6 milliseconds Half Sine Wave, All Three Directions (According EN 60068-2-27)

Temperature Coefficient

  • < 0.2 % of Full Scale/10K

Vibration

  • 50 m/sec at 10 to 1,000 Hz, 1 Octave/min, 20 Constant Load Per Axis (According EN 60770-1)

Wetted Materials

  • 316L Stainless Steel, 1.4404
  • Ceramics (Al₂O₃)
