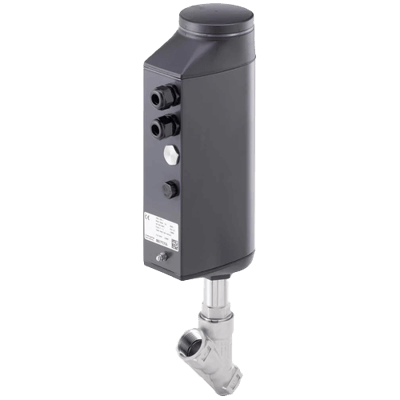

3320 Electromotive Process Valve

Brand: Burkert Fluid Control Systems
Does not ship to Virginia, United States

The innovative Burkert On/Off process valve Type 3320 is the solution when it comes to shut-off tasks under demanding operating conditions.

The electromotive actuator with ball screw moves the swivel plate at a particularly high rate of 6 mm/s to its desired end position. Thereby it reacts reacts almost instantaneously to process signals.

If necessary, the safety position can be approached by an optional energy storage in case of power failure. The actuator and shut-off valve are adapted perfectly to each other with closed design and robust surface. This ensures the hygienic requirements of a fast and residue-free cleaning.

Harsh environments are no problem for the Type 3320 because of the protection class IP65 / IP67 and its high impact and vibration resistance.

Unrivalled cycle life and sealing integrity is guaranteed by the proven self adjusting spindle packing with exchangeable V-seals.

The fieldbus suitable for Type 3320 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.

Specifications

Ambient Temperature Range

  • With SAFEPOS Energy Storage: -25° to 55° C (-13° to 131° F) - the Allowable Value Decreases with Increasing Media Temperature
  • Without SAFEPOS Energy Storage: -25° to 65° C (-13° to 149° F) - the Allowable Value Decreases with Increasing Media Temperature

Approvals & Certifications

  • FDA

Battery Life

  • Energy Storage SAFEPOS Energy-Pack: 10-Years - Depending on Operating Conditions

BSP Connection

  • G 1” Female
  • G 1/2” Female
  • G 1-1/2” Female
  • G 1-1/4” Female
  • G 2” Female
  • G 3/4” Female
  • 1” BSPT Female
  • 1/2” BSPT Female
  • 1-1/2” BSPT Female
  • 1-1/4” BSPT Female
  • 2” BSPT Female
  • 3/4” BSPT Female

Communication

  • EtherNet/IP
  • Modbus/TCP
  • PROFINET

Cone Material

  • Control: AISI 316 Stainless Steel, 1.4401
  • Control: AISI 316L Stainless Steel, 1.4401

Control Functions Characteristics

  • Binary Control: Log (0, 1)

Current

  • Operating: 3 A, Max.

Duty Cycle

  • 100 % Duty Cycle

Electrical Connectors

  • 2 Circular Plug-In Connector M12, 5-Pin & 8-Pin
  • 2 x M20, Cable Gland

Enclosure, Body Material

  • Actuator: Aluminum Powder-Coated
  • Valve: 316L Stainless Steel

Environmental Protection

  • IP65
  • IP67

Flow Rate

  • 5 to 62 m³/hour (Kvs) - Water

Indication

  • LED

Input

  • 0-5 V (Log 0) - Inverted Input Reversed Accordingly
  • 10-30 V (Log 1) - Inverted Input Reversed Accordingly

Interface Connection

  • CAN
  • USB-Bus

Materials of Construction

  • Actuator (Top, Bottom Part): Polyphenylene Sulfide

Media

  • Alcohols
  • Alkali Solution
  • Fuel
  • Hydraulic
  • Neutral Gases
  • Oil
  • Organic Solvents
  • Salt Solution
  • Steam
  • Water

Nominal Pressure

  • psi: 362.6 (kPa: 2,500, bar: 25) - Max.

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female

Operating Pressure

  • PEEK/Stainless Steel - psi: 72.5 to 232 (kPa: 500 to 1,600, bar: 5 to 16)
  • PTFE / Stainless Steel - psi: 87 to 232 (kPa: 600 to 1,600, bar: 6 to 16)

Operating Voltages

  • 24 Vdc ± 10 %, Max.

Operation

  • Electrical Operation
  • Manual Operation

Output

  • Digital Current Limit: 100 mA

Packing Material

  • Spindle: PTFE

Power

  • Electronic without Actuator (W): 2-4 W, Max.

Power Supply

  • 24 Vdc

Power Supply Effect

  • 24 Vdc ± 10 %, Max.

Process Temperature

  • Seat Sealing PEEK/Steel: -10° to 185° C (14° to 365° F)
  • Seat Sealing PTFE/Steel: -10° to 130° C (14° to 266° F)

Response Time

  • Closure Time: < 2.3 to 4.3 seconds - Depending on Stroke

Seat / Seal Material

  • PEEK
  • PTFE
  • Seal: EPDM
  • Steel

Shock

  • Mechanical: 50 G According to IEC 60068-2-27 Test Ea

Speed

  • Travel: 6 mm/sec

Spindle Material

  • AISI 316 Stainless Steel, 1.4401
  • AISI 316L Stainless Steel, 1.4401
  • Guidance: PEEK

Switch Type

  • 4 DIP Switches

Tri-Clamp Connection

  • 1” Tri-Clamp
  • 1/2” Tri-Clamp
  • 1-1/2” Tri-Clamp
  • 1-1/4” Tri-Clamp
  • 2” Tri-Clamp
  • 3/4” Tri-Clamp

Tube Connection

  • 1” Tube
  • 1/2” Tube
  • 1-1/2” Tube
  • 1-1/4” Tube
  • 2” Tube
  • 3/4” Tube

Valve Type

  • Automated
  • Manual

Vibration

  • Sinusoidal: 5 G According to IEC 60068-2-6 Test Fc

Viscosity

  • 600 mm²/sec, Max.

Voltage

  • Binary Control: 0-5 V (Log 0)
  • Binary Control: 10-30 V (Log 1)

Welded Connection

  • 1” Weld End
  • 1/2” Weld End
  • 1-1/2” Weld End
  • 1-1/4” Weld End
  • 2” Weld End
  • 3/4” Weld End
