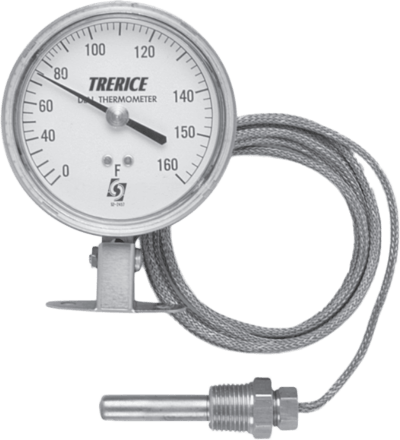

Remote Mounted Series Dial Thermometer
Brand: Trerice Gauges & Valves
The Trerice Remote Mounted Dial Thermometer is used extensively in the building and construction industry and is the preferred temperature instrument for OEMs worldwide.
The stainless steel case is available in many styles for panel and surface mounting. This instrument has a 3½" dial size and is available with either vapor or liquid actuation.
The Remote-Mounted Dial Thermometer is furnished with a rugged cast aluminum case in 4½", 6" and 8½" dial sizes. This instrument is designed for a wide variety of industrial applications, and is available with vapor or liquid actuation
Features- 3½", 4½", 6", 8½" Dial Size
- ±1 Scale Division Accuracy
- Stainless Steel Case or Cast Aluminum Case
- Vapor or Liquid Actuated
Specifications
Model Dial Sizes
- 3-1/2”, 4-1/2”, 6” or 8-1/2”
Movement
- Brass
Case Material
- Cast Aluminum, Black Finish
- Stainless Steel
Window
- Clear Glass
- Acrylic, Snap-In with Nitrile O-Ring Seal
Ring
- Friction Type, 304 Stainless Steel (Hinged Type, Black Finished Aluminum, 80345, 80365 only)
Pointer
- Adjustable, Black Finish
Dial Face
- Aluminum, White Background with Black Graduations and Markings
Accuracy
- ± 1 Scale Division
Approximate Shipping Weight
- 6” Dial: 3.0 lbs (1.36 kg)
- 8-1/2” Dial: 4.0 lbs (1.82 kg)
- 3-1/2” Dial: 1.3 lbs (0.59 kg)
- 4-1/2” Dial: 2.4 lbs (1.09 kg)
