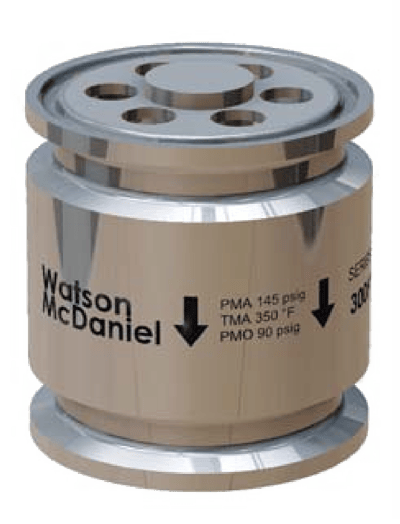

FDA300 Clean Steam Thermostatic Steam Trap
Brand: Watson McDaniel
FDA300 Series high-capacity thermostatic clean steams traps are used on clean steam applications, and for condensate drainage on CIP/SIP systems and various process vessels.
Features- All wetted parts are 316L stainless steel
- Electro-polish finish of 20 to 25 microinches RA on internal surfaces of body
- Electro-polish finish of 25 to 32 microinches RA on external surfaces of body
- Operates close to saturation curve to minimize condensate back-up
- Completely self-draining in the vertical downward flow orientation
Specifications
Brand
Enclosure, Body Material
- AISI 316L Stainless Steel
Tri-Clamp Connection
- 1-1/2” Tri-Clamp
