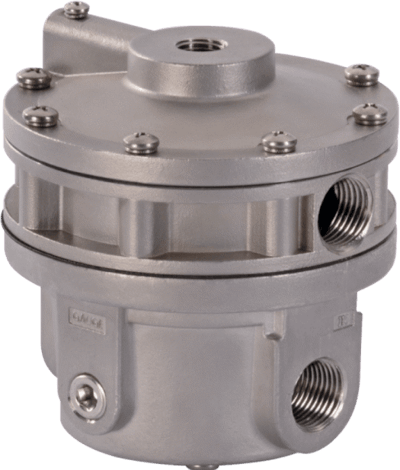

Type 6200 Stainless Steel High Flow Capacity Volume Booster
Brand: ControlAirThe Type 6200 Stainless Steel Volume Booster is a 1:1 signal to output relay that significantly increase the stroking speed in valve actuation system applications that require high forward airflow and exhaust capacities.
Constructed of 316 stainless steel to ensure the best resistance to corrosive environments.
The Type 6200 is suitable for either diaphragm or piston actuators.
A fixed deadband and adjustable bypass valve combine to allow small incremental downstream adjustment without opening the main booster valve.
The bypass valve is used to adjust dynamic response to provide stable operation over a wide range of actuator sizes.
Negative Bias adjustment: up to -4 psi is available to “zero” downstream pressures when using standard signal pressure ranges.
Features- 1/4”, 1/2” or 3/4" NPT Porting
- Aluminum or 316 Stainless Steel Construction
- Integral Adjustable Bypass Valve
- High Flow Capacity for Rapid Actuator Stroking
- Soft Valve Seat Design Provides Tight Shutoff and Eliminates Leakage in Steady State Operation
- High Temperature Operation Up to 200°F - 93°C
- High Output Exhaust Vents
- 2 1/4" NPT Gauge Ports
- Balanced Supply Valve Minimizes the Effect of Supply Pressure Variation
- Optional Negative Bias
Specifications
Brand
Housing Material
- Aluminum
- 316 Stainless Steel
Porting
- 1/4” NPT
- 1/2” NPT
- 3/4” NPT
Options
- 2-1/4” NPT Tapped Exhaust Vents - Type 6100 Only
- Low Temperature: -62 to 194 ̊F / -52 to 90 ̊C
- EAC TR-CU
- Stainless Steel Trim - Type 6100 Only
- ATEX 2014/34/EU
- Negative Bias -4 ± 1 psi Bias
