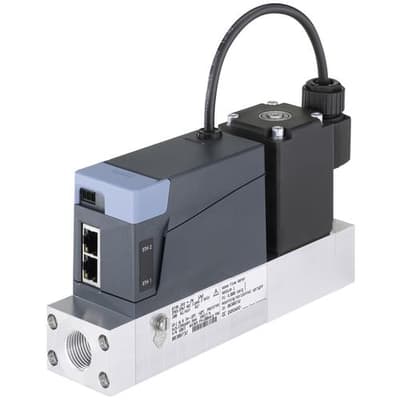

Type 8745 Mass Flow Controller / Mass Flow Meter for Gases
Brand: Burkert Fluid Control SystemsThe mass flow controller (MFC) / meter (MFM) Type 8745 is suitable for mass flow control of high flow rates.
Type 8745 can be configured as MFM or MFC. Optional, four different gases can be calibrated.
The thermal inline sensor is located directly in the main gas stream and therefore reaches very fast response times while causing a very low pressure drop. A direct-acting proportional valve as regulating unit guarantees high sensitivity. The integrated PI controller ensures outstanding control characteristics of the MFC.
MFC Type 8745 is available in two versions: with electromagnetic proportional valve and with motor-driven proportional valve.
Features- Nominal flow ranges from 20 lN/min up to 2,500 lN/min
- High accuracy and repeatability
- Communication via standard signals or Industrial Ethernet
- Electromagnetic and motor-driven valve actuation available
- Easy device exchange through configuration memory
Specifications
Body Material
- Aluminium or Stainless Steel
Housing Material
- PC (Polycarbonate)
Seal Material
- FKM or EPDM
Power Supply
- 24 Vdc ± 10 %
Medium Temperature
- -10° to 70° C
Port Connection
- G or NPT 1/4”, 3/8”, 1/2”, 3/4”, 1”
- Flange
Ambient Temperature
- -10° to 50° C
Documentation
Data Sheets
Product Manuals
- Bedienungsanleitung Typ 8745 Industrial Ethernet und Analog Ausf hrungen DE pdf 1.6 MB
- For stable transport of bulk materials EN pdf 620 KB
- Manuel d utilisation type 8745 Versions Ethernet Industriel et analogiques FR pdf 1.7 MB
- Operating Instructions type 8745 Industrial Ethernet and analog versions EN pdf 1.7 MB
