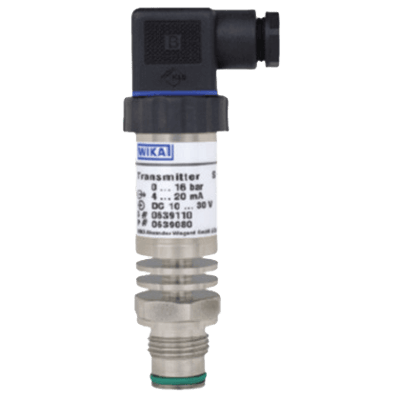

Model S-11 Flush Pressure Transmitter

Brand: WIKA Instruments

Specialist for Viscous and Solids-Containing Media The model S-11 pressure transmitter with flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallising, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.

Through its optimised design, the flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process. Low-maintenance and troublefree pressure measurement is thus also guaranteed in critical applications with frequently changing media. High accuracy, a robust design, high-quality workmanship and the high flexibility of configuration are key features of the model S-11.

Flush Process Connection All process connections of the flush pressure transmitter are made of stainless steel, all welded and isolate the process medium from the pressure measuring instrument via a positive seal. A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured. For high medium temperatures of up to 302 °F (150 °C), the pressure transmitter is also available with an integrated cooling element. Specifically for the food and beverage industry, a version with internal system fill fluid in accordance with FDA 21 CFR 178.3750 can be chosen.
Features
  • High-quality product
  • Many configurations possible
  • Flush process connection
  • Large stocks for short delivery times
  • Vacuum-tight

Specifications

Accuracy

  • ≤ ± 0.25 % of Span
  • ≤ ± 0.5 % of Span

Ambient Temperature Range

  • -20° to 80° C (-4° to 176° F)

Applications

  • Food & Beverage Industry
  • General Industrial Applications
  • Hydraulic Aggregates
  • Machine Building

Approvals & Certifications

  • 3A Sanitary, Food, USA
  • CE
  • CRN, Safety (e.g. Electr. Safety, Overpressure, to), Canada
  • CSA, Safety (e.g. Electr. Safety, Overpressure, to), Canada
  • EMC Directive 2004/108/EC, EN 61326 Emission (Group 1, Class B) & Interference Immunity (Industrial Application)
  • GOST, Metrology/Measurement Technology, Russia
  • GOST-R, Import Certificate, Russia
  • PED: 97/23/EC

BSP Connection

  • G 1" B Male Flush/Hygienic G 1" B Male Flush
  • G 1/2" B Male Flush

Electrical Connectors

  • Angular Connector DIN 175301-803 A
  • Cable Outlet
  • Circular Connector M12×1 (4-Pin)

Environmental Protection

  • IP65
  • IP67
  • IP68

Fill Material

  • Synthetic Oil

Non-Linearity

  • ≤ ± 0.2 % of Span BFSL

O-Ring Material

  • EPDM
  • FKM
  • FPM
  • NBR

Output

  • 0-10 Vdc (Voltage 3-Wire)
  • 0-20 mA (Current 3-Wire)
  • 0-5 Vdc (Voltage 3-Wire)
  • 4-20 mA (Current 2-Wire)

Overpressure & Static Pressure Limits

  • psi: 145 to 11,600 (kPa: 100 to 120,000, bar: 1 to 1,200)

Power Supply

  • 10-30 Vdc - Output Signal: 4-20 mA / 0-20 mA / 0-5 Vdc
  • 14-30 Vdc - Output Signal: 0-10 Vdc

Pressure Range

  • bar: 0 to 600
  • kPa: 0 to 60,000
  • psi: 0 to 6,000

Pressure Type

  • Absolute
  • Gauge
  • Vacuum

Repeatability

  • Non-Repeatability ≤ ± 0.1 % of Span

Seat / Seal Material

  • EPDM
  • FKM
  • FPM
  • NBR

Shock

  • 1,000 G - without Cooling Element
  • 400 G - with Cooling Element

Storage Temperature

  • -40° to 100° C (-40° to 212° F)

Temperature Range

  • -20° to 150° C (-4° to 302° F) - with Cooling Element
  • -30° to 100° C (-22° to 212° F) - without Cooling Element
  • -30° to 125° C (-22° to 257° F) - without Cooling Element

Vibration

  • 10 G - with Cooling Element
  • 20 G - without Cooling Element

Wetted Materials

  • Stainless Steel

  • General industrial applications
  • Food and beverage industry
  • Filling and packing machinery
  • Dosing technology
  • Level measurement
