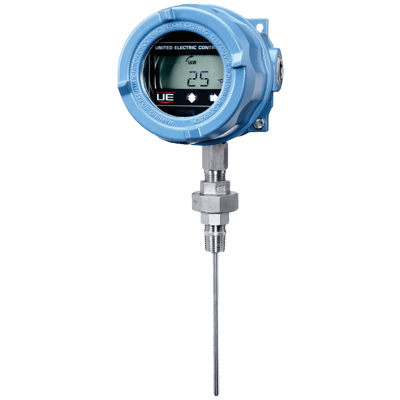

One Series Model 1XSWHH Pressure & Temperature Switch

Brand: United Electric Controls Ltd.

UE's One Series is for tough applications with high cycle rates, severe shock or high vibration.

For plant upgrades, the versatile powering options - Analog loop, discrete input powered (Vdc or Vac) and externally powered models offer options for soft or high capacity SPST alarm, trip or emergency shutdown.

With its integral digital display, the "fit for service" One Series effectively does the job of multiple instruments: transmitter, gauge, process switch, or trip alarm.

The embedded logic and high diagnostic coverage means the One Series is a safer, smarter and less complex device than other sensor alternatives.
Features
  • Transmitter-only, switch-only and hybrid transmitter-switch models offer maximum flexibility
  • Digital process display provides process conditions at a glance
  • Programmable set point and deadband provides the most versatile, accurate and repeatable alarm and shutdown switching
  • Configurable IAW self-diagnostics provide piece of mind that the instrument is functioning properly by communicating with the control system using a dedicated discrete output
  • Plugged Port Detection annunciates a clogged sensor and a closed bypass valve
  • Max/Min memory - samples and stores the highest and lowest extreme process values for process diagnostics and learning
  • Nuisance trip filtering eliminates unwanted nuisance trips and unnecessary alarms
  • Programmable trip delay - hold off the trip decision for tenths of seconds up to several minutes
  • Trip counter - records trips for up to two relays for process diagnostics and learning

Specifications

Accuracy

  • 0.5 % of Full Range Span

Adjustment Type

  • Factory Set (Pre-Set)

Ambient Temperature Range

  • -40° to 70° C (-40° to 158° F)

Applications

  • Filter Monitoring
  • Hydraulic Oil Pressure
  • Lubricating Oil Monitoring
  • Plant Upgrades
  • Pumps & Compressors

Approvals & Certifications

  • Emission: EN 61000-6-4 Class A, Immunity: EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3 (Continuous Radiated Disturbances), EN 61000-4-4 (Electrical Fast Transients), EN 61000-4-5 (Surges), EN 61000-4-6 (Continuous Conducted Disturbances), EN 61000
  • ISO 9001

Approvals & Certifications

  • ATEX: Demko 09-ATEX-0813748X II 3 G Ex NA IIC T4 Gc, Demko 15-ATEX-1483 Tamb: -40° to 85° C (-40° to 185° F)
  • CE
  • CRN
  • EAC Ex
  • IEC 60079-0, 60079-1, 60079-15, 60079-31
  • IEC Ex UL 08.0017X Tamb: -40° to 85° C (-40° to 185° F)
  • INMETRO
  • PESO
  • RoHS
  • UL (C,US): 50, 50E, 913, 1203 & 61010-1

BSP Connection

  • G 1/2" Male

Cover Material

  • Aluminum Alloy 360

Delay Time

  • Trip Delay (Switch Decision Delay): 0 to 999.9 seconds in 1/10th second Increments

Diaphragm Material

  • 316L Stainless Steel - Welded

Display

  • 4-Digit × 0.5" (12.7 mm) Backlit LCD

Distance

  • Effective Transmission Distance: 2,000 feet (610 metres)

Electrical Connectors

  • 3/4" NPT Female

Electrical Rating

  • Law Switch Rating: 0.1 A at 7.8-50 Vdc
  • Set Point Switch Rating: 0.15 to 10 A at 70-240 Vac

Enclosure Finish

  • Epoxy Powder-Coated

Enclosure, Body Material

  • Aluminum Alloy 360

Environmental Protection

  • Flameproof
  • IP66
  • NEMA 4X

Fill Material

  • 0.25 ml Silicone Oil
  • Epoxy Fill for Local Low Temperature
  • Powder Fill for Remote High Temperature

Input Power

  • 4-Wire 70-240 Vac at 6 mA External Power Supply

Length

  • Sheath Length: 4" to 10" (101.6 to 254 mm)

Load

  • Minimum Load Requirement: 0.15 A

Materials of Construction

  • Sheath: 316 Stainless Steel

Mounting

  • Pipe Mounting Bracket
  • Wall Mounting Bracket

Name Plate, Tag Material

  • Stainless Steel

NPT Connection

  • 1/2" NPT Female
  • 1/2" NPT Male (Compression, Union Connector)
  • 1/4" NPT Female
  • 1/4" NPT Male

Operating Pressure

  • psi: -14.7 to 6,000 (kPa: -100 to 41,360, bar: -1 to 413.6)

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Output

  • Analog Output: 4-20 mA

Overpressure & Static Pressure Limits

  • Maximum

Pressure Type

  • Differential
  • Gauge

Process Temperature

  • Gauge & Differential Pressure: Maximum
  • Temperature: -200° to 593° C (-328° to 1,100° F)

Repeatability

  • 0.1 % of Full Range Span

Response Time

  • Analog Output Response Time: 250 milliseconds, Maximum
  • Display Response Time: 400 milliseconds (Updated 2.5 times Per second)
  • Switch Response Time: ≤ 100 milliseconds for Detection of Full Step Change & Change of Output State with Trip Delay & Filter Turned Off

Rotation

  • Display can be Rotated up to 180° Both Directions

Sensor, Probe Connection

  • 4-Wire

Sensor, Probe Type

  • 4-Wire Platinum RTD

Service

  • Oxygen Service: Cleaned in Accordance with ASTM G93

Set Point - Decreasing

  • -184° to 538° C (-300° to 1,000° F)
  • bar: -1 to 413.6
  • kPa: -100 to 41,360
  • psi: -14.7 to 6,000

Set Point - Increasing

  • -184° to 538° C (-300° to 1,000° F)
  • bar: -1 to 413.6
  • kPa: -100 to 41,360
  • psi: -14.7 to 6,000

Shock

  • 15 G, 10 milliseconds Duration
  • 40 G, 6 milliseconds
  • MIL-STD-810 G, Effect < ± 0.40 % of Range

Stability

  • Long Term Stability: ± 0.25 % of Range Per Year, Maximum

Switch Type

  • SPST

System Pressure

  • bar: 0.7 to 827.4
  • kPa: 68.9 to 82,737
  • psi: 10 to 12,000

Temperature Range

  • Display Visibility Temperature Range: -12° to 70° C (10° to 158° F)

Thermal Drift

  • 0.03 % of Full Scale/°C

Vibration

  • 5 G at 10 to 1,000 Hz

Vibration Effect

  • < ± 0.40 % of Range

Wetted Materials

  • Differential Pressure: 316L Stainless Steel
  • Gage Pressure: 316 Stainless Steel

Window Material

  • Tempered Glass
