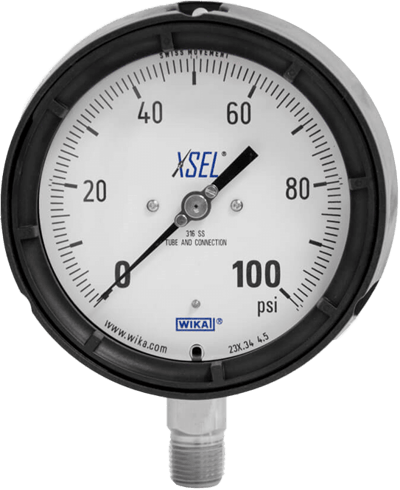

XSEL® Process Gauge

Brand: WIKA Instruments

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.

The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries.
Features
  • Excellent load-cycle stability and shock resistance
  • Solid front thermoplastic case
  • Positive pressure ranges to 30,000 psi (2,000 bar)
  • All lower mount connection gauges are factory prepared for case filling

Specifications

Design

  • ASME B40.100

Dial Size

  • 4-1/2" (115 mm)
  • 6" (160 mm)

Accuracy Class

  • ± 0.5 % of Span (ASME B40.100 Grade 2A)
  • ± 1.0 % of Span for 20,000 psi (1,600 bar) Range and Above (ASME B40.100 Grade 1A)

Ranges

  • Vacuum / Compound to 400 psi
  • Pressure 15 psi to 30,000 psi or Other Equivalent Units of pressure or Vacuum

Operating Temperature

  • Dry & Silicone Filled: -40° to +150° F (-20° to 66° C)
  • Glycerine Filled: -4° to +150° F (-20° to 66° C)

Pressure Connection Material

  • 316L Stainless Steel

Bourdon Tube Material

  • 316L Stainless Steel

Environmental Protection

  • NEMA 3 / IP54
  • NEMA 4X / IP66

Fill Material

  • Glycerine 99.7 % - Type 233.34

Materials of Construction

  • Window: Clear Acrylic with Buna-N Gasket
  • Case: Black Fiberglass-Reinforced Thermoplastic (POCAN)
  • Pointer: Black Aluminum
  • Dial: White Aluminum
  • Movement: Stainless Steel
  • Restrictor: Stainless Steel

Certifications & Approvals

  • CE
  • PAC Kazakhstan
  • MChS
  • CRN
  • PAC Russia

Connection Loation

  • Lower Mount (Radial)
  • Lower Back Mount

  • Corrosive Environments And Gaseous Or Liquid Media
  • High Dynamic Pressure Pulsations Or Vibration
  • Process Industry
