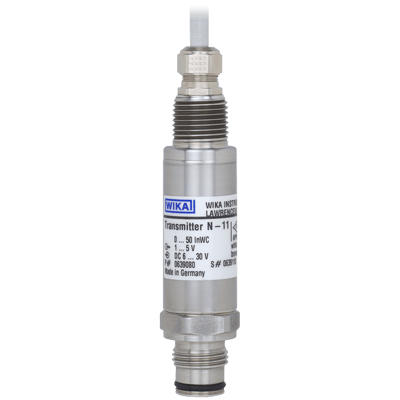

Model N-10 / N-11 Hazardous Area Non-Incendive Transmitter

Brand: WIKA Instruments

Type N-10 pressure transmitters are specifically designed to meet the durability and performance requirements of gas compressor systems. These pressure transmitters feature an industry standard 4-20 mA 2 wire signal output, NEMA 4X (IP 67) weather protection and are extremely resistant to pressure spikes, vibration and moisture intrusion. NACE MR-01-75 compliance provides extra resistance against sulfide stress cracking when exposed to gases containing sulphur.

Type N-11 pressure transmitters feature a flat, non-clogging diaphragm. This is designed for use with viscous fluids or media containing particulates that could clog the pressure port of the standard NPT version.

The transmitters are engineered to meet Class I Division 2 non-incendive protection requirements as well as, Class II Division 1 dust-ignition protection requirements in hazardous environments. Each undergoes extensive quality control testing and calibration to achieve a linearity of < 0.25% full scale.

In addition, each pressure transmitter is temperature compensated to assure accuracy and long term stability when exposed to severe ambient temperature variations.
Features
  • FM / CSA approved Non-incendive for Class I Division 2, Dust-ignitionproof for Class II, Division 1
  • Engineered to meet the harsh demands of gas compressor applications
  • Does not require the use of intrinsically safe barriers
  • NACE MR-01-75 compliant wetted parts
  • 4-20 mA or low power 1-5 volt output signals available

Specifications

Accuracy

  • ≤ 0.25 % of Span (BFSL)
  • ≤ 0.5 % of Span (Limit Point Calibration)

Ambient Temperature Range

  • -30° to 80° C (-22° to 176° F)

Applications

  • General Industrial Applications
  • Natural Gas Compressors
  • Pipeline Pressure
  • Wellhead Monitoring

Approvals & Certifications

  • BelCT
  • CRN
  • CSA - Non-Incendive with Entity Approval For: Class I, Division 2, Grade A, B, C, D. Dust Ignition-proof for Class II, Division 1, Groups E, F, G.
  • EAC
  • FM - Non-Incendive with Entity Approval For: Class I, Division 2, Grade A, B, C, D. Dust Ignition-proof for Class II, Division 1, Groups E, F, G.
  • GOST
  • KazlnMetr
  • UkrSEPRO
  • UZSTANDARD

BSP Connection

  • G 1" B Male
  • G 1/2" B Male EN 837
  • G 1/4" B Male EN 837

Burst Pressure

  • psi: 35 to 43,500 (kPa: 240 to 300,000, bar: 2.4 to 3,000)

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Fill Material

  • Synthetic Oil (Only for Pressure Ranges up to 300 psi or Flush Diaphragm Units)

Hysteresis

  • ≤ 0.1 % of Span

Isolation

  • 500 V

Linearity

  • ≤ 0.25 % of Full Scale

Maximum System Pressure

  • psi: 29 to 21,750 (kPa: 200 to 150,000, bar: 2 to 1,500)

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1/2" NPT Male
  • 1/4" NPT Male

O-Ring Material

  • NBR

Output

  • 1-5 Vdc, 3-Wire
  • 4-20 mA, 2-Wire

Power Supply

  • 10-30 Vdc - Output Signal: 4-20 mA, 2-Wire
  • 6-30 Vdc - Output Signal: 1-5 Vdc, 3-Wire

Pressure Range

  • bar: 0.3 to 1,034
  • kPa: 34 to 103,400
  • psi: 5 to 15,000

Pressure Type

  • Absolute
  • Compound Pressure
  • Gauge
  • Vacuum

Repeatability

  • Non-Repeatability: ≤ 0.05 % of Span

Response Time

  • ≤ 1 millisecond
  • ≤ 10 milliseconds when Media Temperatures are Below -30° C (-22° F) for Pressure Ranges up to 300 psi or with Flush Diaphragm

Shock

  • 1,000 G According to IEC 60068-2-27 (Mechanical Shock)

Storage Temperature

  • -30° to 105° C (-22° to 221° F)

Temperature Range

  • -30° to 80° C (-22° to 176° F)

Vibration

  • 20 G According to IEC 60068-2-27 (Vibration Under Resonant Conditions)

Wetted Materials

  • Elgiloy & Stainless Steel: > psi: 1,000
  • EPDM
  • Stainless Steel
  • Viton

  • Natural Gas Compressors
  • Wellhead Monitoring
  • Pipeline Pressure
  • General Industrial Applications
