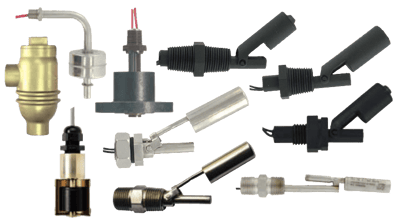

Dwyer Level Switch - Horizontal/Specialty, Series F6 & F7 H/S
Images are representations only.

F7-SS6B

Series: Series F6 & F7 Level Switch - Horizontal/Specialty Brand: Dwyer Instruments, LLC
Price
Request a Quote
Stock
Out of Stock
Request Information

Specifications

Brand

Approvals & Certifications

  • CE
  • RoHS

Cable Length

  • 25 ft (7.62 m)

Cable Type

  • Slosh Shield

Electrical - Free Leads

  • 18 AWG, 24" (61 cm)
  • 20 AWG, 11.8" (30 cm)
  • 22 AWG, 11.8" (30 cm)
  • 22 AWG, 24" (61 cm)
  • 22 AWG, 25´ (7.6 m)
  • 22 AWG, 72" (182 cm)

Electrical Rating

  • 30 VA, 0.14 A at 220 Vac

Environmental Protection

  • Class I, Groups A, B, C, D
  • Class II, Div. 1, Groups E, F, G
  • Explosion-proof

Instrument Connection

  • M16 x 2P

Materials of Construction

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Brass
  • Buna-N
  • Polypropylene

Media

  • Chemicals
  • Compatible Liquids
  • Oil
  • Water

NPT Connection

  • 1/2" NPT Female
  • 1/8" NPT Female
  • 3/4" NPT Female

Pressure Range

  • psig: 50 to 500 (kPa: 300 to 3400, bar: 3 to 34)

Sensor Orientation

  • Horizontal with Index Arrow Pointing Up or Down - F6-MHS/HPS
  • Vertical ± 20 - F6-SS

Stem Material

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Brass
  • Buna-N
  • Polypropylene

Switch Type

  • DPDT

Temperature Range

  • 80° to 200° C (176° to 392° F)

Documentation

Approvals

Catalogs

Manuals

View Product Series
