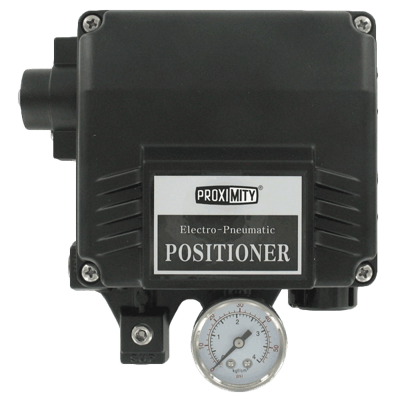

Dwyer PRECISOR II Pneumatic and Electro-Pneumatic Positioner, Series 165
Images are representations only.

165EL

Series: Series 165 PRECISOR II Pneumatic and Electro-Pneumatic Positioner Brand: Dwyer Instruments, LLC
Price
Request a Quote
Stock
Out of Stock
Request Information

Dwyer PRECISOR II Pneumatic and Electro-Pneumatic Positioner, Series 165

Specifications

Brand

Air Consumption

  • 0.10 to 28 scfm (3 to 80 LPM) at psig: 20 (kPa: 140, bar: 1.4) - Flow Capacity

Approvals & Certifications

  • CE

Conduit Connection

  • 1/2" NPT

Electrical Connectors

  • Screw Terminal

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum Die Casting

Environmental Protection

  • IP66
  • NEMA 4X

Hysteresis

  • 1 % of Full Scale

Input Impedance

  • 250 ± 15 ohms

Input Signal

  • 0.5 to 6" (10 to 150 mm) - Stroke
  • 4-20 mA DC - Electro-Pneumatic
  • psig: 3 to 15 (kPa: 20.7 to 103.4, bar: 0.2 to 1) - Pneumatic

Linearization

  • ± 0.2 % of Full Scale

NPT Connection

  • 1/4" NPT Female - Air Supply Connection
  • 1/8" NPT Female - Gage Connection

Repeatability

  • ± 0.5 % of Full Scale

Sensitivity

  • ± 0.2 % of Full Scale

Supply Pressure

  • psi: 20 to 100 (kPa: 140 to 700, bar: 1.4 to 7 bar) - Air Supply

Temperature Range

  • -20° to 70° C (-4° to 158° F) - Aluminum
  • -40° to 70° C (-40° to 158° F) - Stainless Steel

Documentation

Approvals

Catalogs

Manuals
