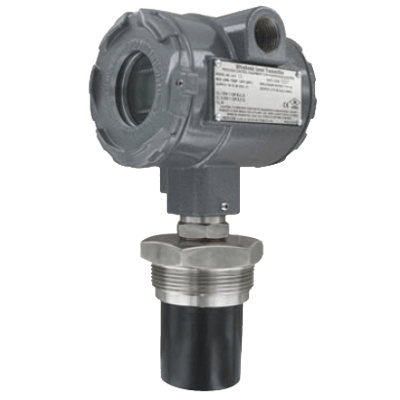

Dwyer Ultrasonic Level Transmitter, Series ULT
Images are representations only.

ULT-21

Series: Series ULT Ultrasonic Level Transmitter Brand: Dwyer Instruments, LLC
Price
Request a Quote
Stock
Out of Stock
Request Information

Specifications

Brand

Accuracy

  • ± 0.2 % of Full Scale

Ambient Temperature Range

  • -40° to 60° C (-40° to 140° F) (Compensated Temperature)

Approvals & Certifications

  • CE
  • FM

BSP Connection

  • 2” BSPT Male

Conduit Connection

  • 1/2” NPT Female
  • M20

Connection Material

  • 303 Stainless Steel

Display

  • 6-Character LCD

Electrical Connectors

  • Screw Terminal

Environmental Protection

  • Class 1, Div. 1, Groups B, C, D
  • Class II, Div. 1, Groups E, F, G
  • Explosion-proof
  • IP66
  • NEMA 4X
  • Weatherproof

Loop Resistance

  • 250 ohms

Media

  • Compatible Fluids

NPT Connection

  • 2” NPT Male

O-Ring Material

  • Fluoroelastomer

Output

  • 4-20 mA

Power Requirement

  • 18 to 28 Vdc (2-Wire)

Pressure Range

  • bar: 0 to 2
  • kPa: 0 to 206
  • psi: 0 to 30

Process Temperature

  • -20° to 60° C (-4° to 140° F)

Programming

  • 4 Button

Resolution

  • 0.079” (2 mm)

Sensor / Probe Material

  • PVDF

Sensor Orientation

  • Vertical
