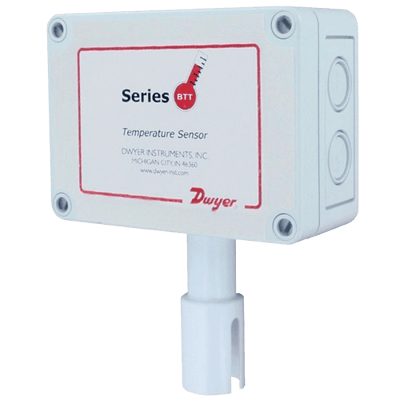

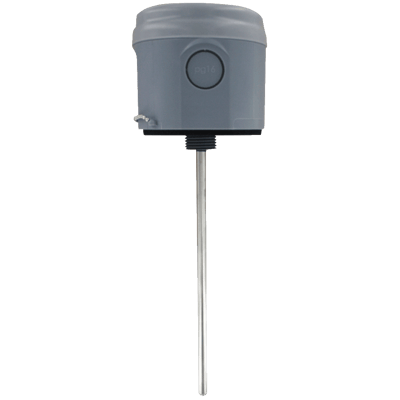

Images are representations only.

BTT-O25-1

Series: Series BTT Temperature Transmitter Brand: Dwyer Instruments, LLC
Price
Request a Quote
Stock
Out of Stock
Request Information

Specifications

Brand

Accuracy

  • ± 0.5° C (± 0.9° F): 0 to 60° C or 32° to 140° F (Voltage), -20° to 50° C or -4° to 122° F (Current)
  • ± 0.75° C: 50° to 60° C (Current)
  • ± 1° C: -40° to 0° C (Voltage)

Approvals & Certifications

  • FC (Factory Calibration Certificate)

Approvals & Certifications

  • CE

Conduit Connection

  • 1/2” NPT

Electrical Connectors

  • Removable Terminal Block

Enclosure, Body Material

  • Polycarbonate

Environmental Protection

  • IP66
  • NEMA 4X

Gasket Material

  • Neoprene (Wetted Materials)

Insertion 'U' Length

  • 12” (30 cm)
  • 18” (46 cm)
  • 2.5” (6.4 cm)
  • 4” (10.1 cm)
  • 6” (15.2 cm)
  • 8” (20.2 cm)

Mounting

  • Duct Mount
  • Immersion Mount

NACE & NIST

  • NIST Calibration Certificate

NPT Connection

  • 1/2” NPT

O-Ring Material

  • Silicone

Output

  • 0-10 Vdc
  • 4-20 mA

Power Requirement

  • 13-36 Vdc

Response Time

  • 100 milliseconds

Sensor / Probe Material

  • 304 Stainless Steel (Wetted Materials)

Sensor / Probe Type

  • Pt1000 RTD

Temperature Range

  • -40° to 60° C (-40° to 140° F)

Wetted Materials

  • Nylon
